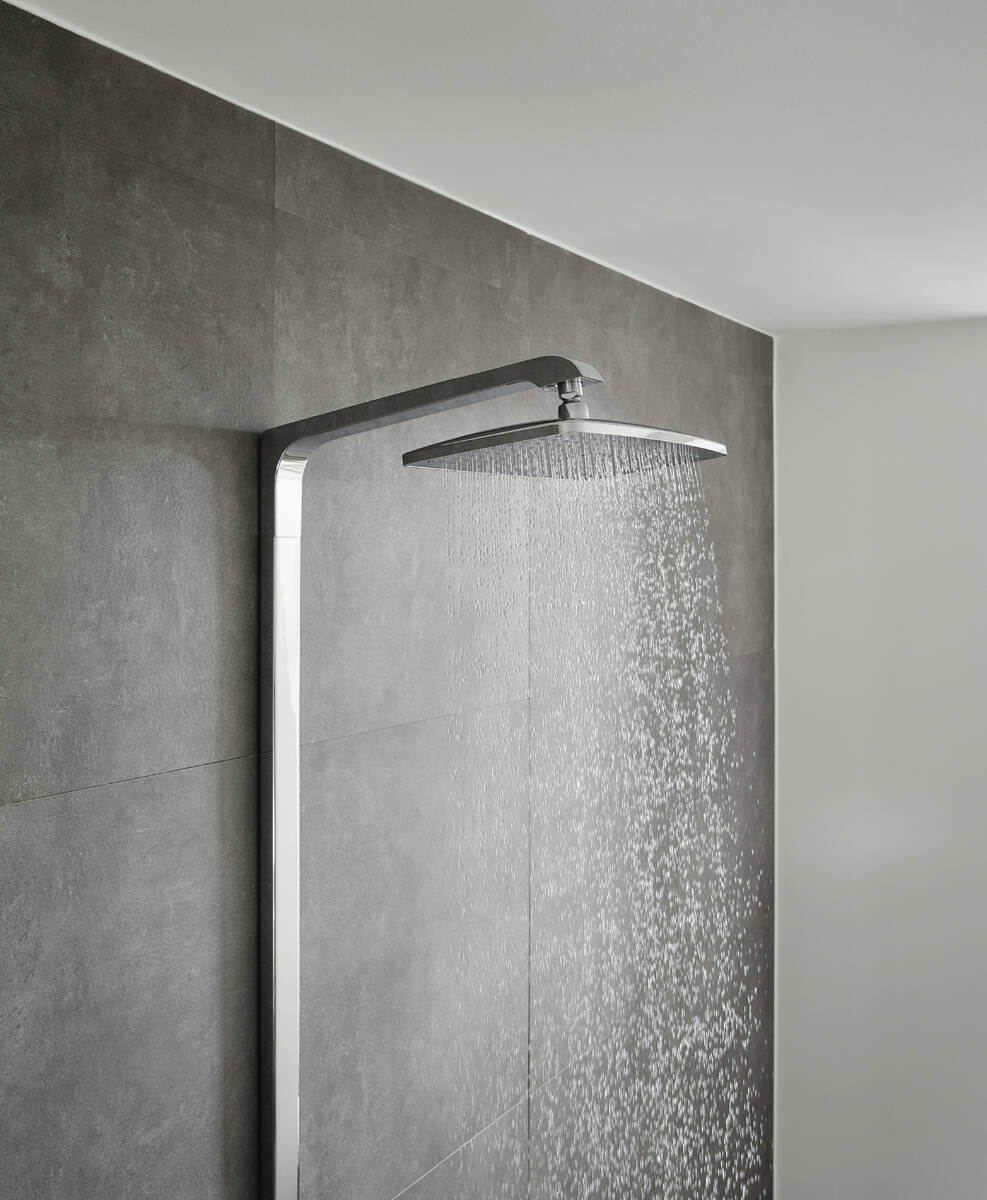

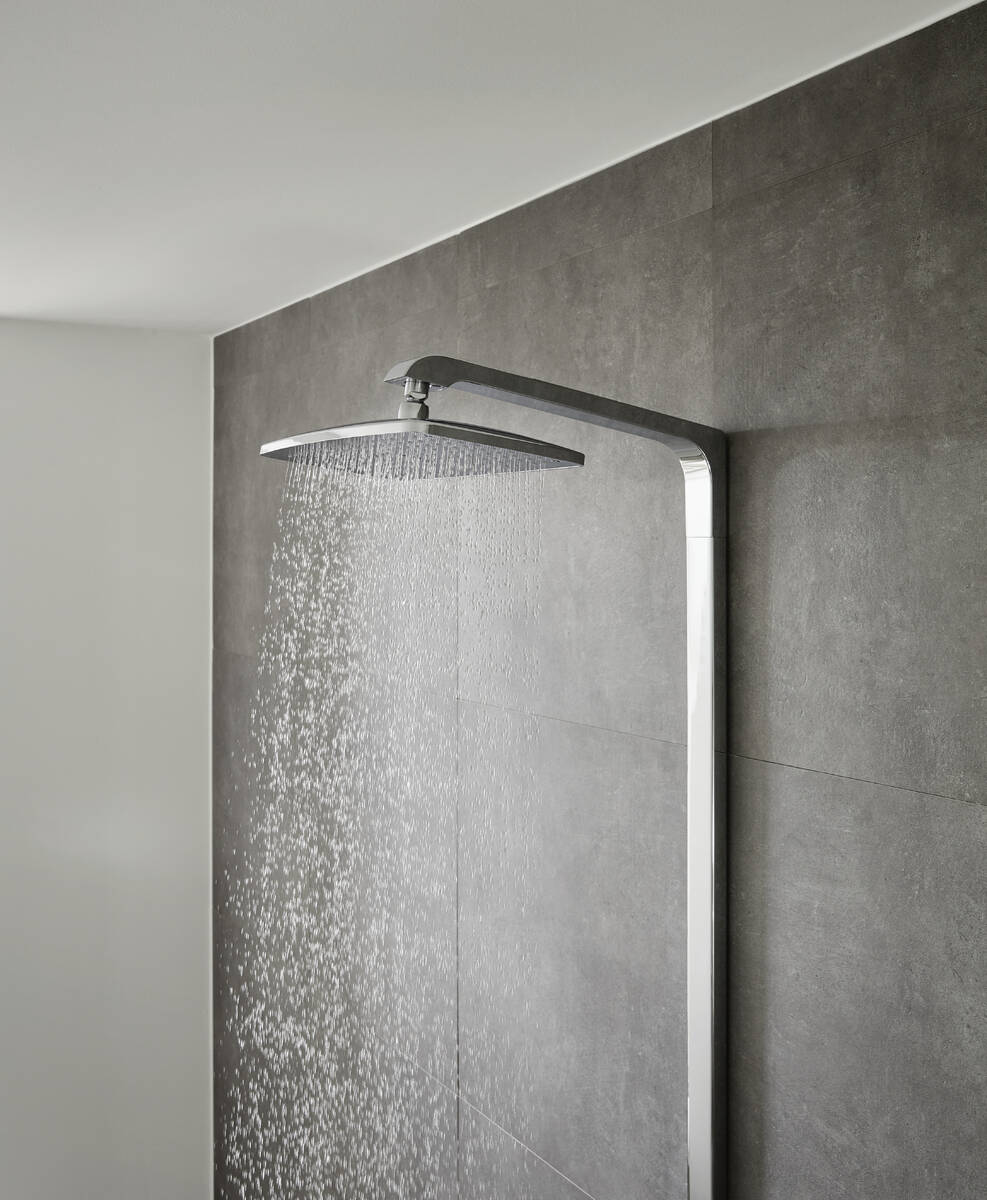

hansgrohe Raindance EShowerpipe 360 1jet with thermostat

Art. no. 27112000
Please try again.
Please try again.
Article features
- consists of: overhead shower, hand shower, shower thermostat, shower hose, shower holder, shower bar
- overhead shower Raindance E 360 Air
- shower head size overhead shower: 360 x 190 mm
- spray type overhead shower: RainAir
- shelf made of safety glass
- surface shelf: mirror glass
- spray type hand shower: RainAir, Rain, Whirl
- maximum flow rate for Showerpipe at 3 bar: 15 l/min
- minimum flow pressure: 1 bar
- max. operating pressure: 10 bar
- ball-joint: overhead shower angle adjustable
- bar width: 44 mm
- shower arm length overhead shower: 380 mm
- CoolContact thermostat: Prevents the housing from heating up, making showering even safer
- thermostat Ecostat Select
- safety stop at 40°C
- adjustable hot water limitation
- outlets controlled via turning handle
- will not run two outlets at same time
- suitable for continuous flow water heaters
- mounting type: exposed installation
- connection dimension DN15
- connection thread G ½
- centre distance 150 ± 12 mm
- intrinsically safe against backflow
- pipe length: 1066 mm
- in case of installation on existing G ¾ connections, adaptor no.02026000 must be used
- 2 functions
Downloads
Planning data
BIM data
Technical drawings
Instructions
Installation information
Scale drawing
Installation example
Flow diagram
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for year of manufacture 02/15
To the spare parts catalogueArt. no. | DescriptionArt. No.Description & Article No. |
---|
a | adapter for ball S - union02026000 |
b | ball s-unions with escutcheon98293000 |
c | brake disc92832000 |
1 | shower arm92267000 |
2 | Overhead shower with female thread G½27381000 |
3 | seal98058000 |
4 | spray body92295000 |
5 | set of screws92834000 |
6 | filter97735000 |
7 | air jet95416000 |
8 | O-ring 9x1,598117000 |
9 | tile-matching-disk 7 mm95960000 |
10 | pipe with cover (850 mm)92265000 |
11 | pipe with cover (950 mm)92357000 |
12 | pipe with cover (1282 mm)92266000 |
13 | pipe with cover (1382 mm)92358000 |
14 | O-ring 9x1,898118000 |
15 | shower holder28331000 |
16 | guide98918000 |
17 | handshower26520000 |
18 | filter insert97708000 |
19 | shower hose Isiflex'B 1,60 m28276000 |
20 | Hose Connection96044000 |
21 | O-ring 14x298129000 |
22 | hollow set screw M6x16 including o-ring 29x398372000 |
23 | handle for thermostat95770000 |
24 | safety set95771000 |
25 | handle fixing set92130000 |
26 | nut98913000 |
27 | thermostat cartridge98282000 |
28 | cartridge for exchanged connections92373000 |
29 | handle95957000 |
30 | shut off unit with selector98283000 |
31 | escutcheon98478000 |
32 | seal97530000 |
33 | non return valve (pressure-resistant up to 2 MPa)95773000 |
34 | O-ring 17x298199000 |
35 | set of S-unions95772000 |
36 | noise reduction96429000 |
37 | O-ring 29x398371000 |
Innovative technologies
Less limescale, more joy
Great showering pleasure
Intuitive jet adjustment
Safe and indulgent showering
More pleasure, more efficiency
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
XXL Performance
Great showering pleasure
XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
CoolContact
Safe and indulgent showering
This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water to create light, pearl-like droplets that caress the skin. The shower feels luxurious, even though little water is consumed. The spray causes less splash, reducing the time to clean the shower area.
Spray Types
RainAir
Gentle droplets enriched with air from the luxurious shower rain feel silky soft on the skin for an indulgent shower. Additionally, this spray type is efficient and thorough enough to rinse out shampoo.
Rain
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Whirl
Rotating water sprays to pleasantly shower away everyday tensions. Individual sprays of water flow around each other in a helical pattern, helping to relieve tension with their gentle massaging action.
Five-year manufacturer’s guarantee
5
Year warranty
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
