hansgrohe Metris M71Single lever kitchen mixer 320, EcoSmart, pull-out spout, 1jet

Art. no. 14781000
Please try again.
Please try again.
Article features
- ComfortZone 320
- l-spout
- swivel range adjustable in 2 steps to 110° or 150°
- laminar spray
- MagFit magnetic shower support
- quick connect hose
- connection dimension: DN15

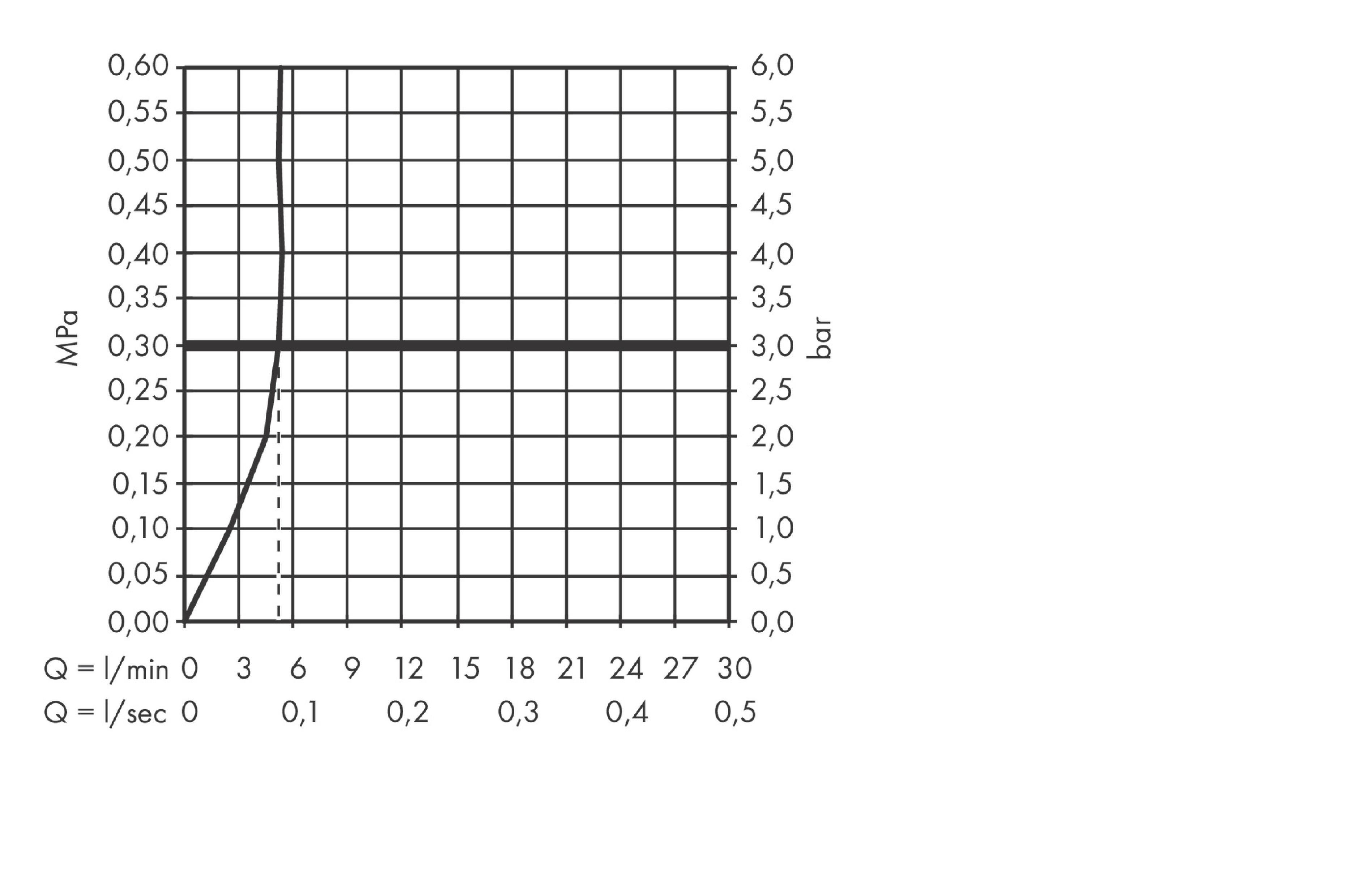

- maximum flow rate at 3 bar: 5,8 l/min
- ceramic cartridge
- connection type: G ⅜ connections
- temperature limitation adjustable
- integrated non-return valve
- suitable for continuous flow water heaters
- extension length up to 50 cm
- significantly reduced splashing by soft start of the water flow
- EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
- WELS SGP 2 Tick SKT/BT-2019/028260/SET
Downloads
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for year of manufacture 10/19
To the spare parts catalogueArt. no. | DescriptionArt. No.Description & Article No. |
---|
a | set of adapters93395000 |
1 | spout cpl.92127000 |
2 | nut92755000 |
3 | O-ring 11x298127000 |
4 | filter97735000 |
5 | flow limiter / non return valve95376000 |
6 | handspray92128019 |
7 | aerator laminar M24x1 (15 l/min)92517000 |
8 | set of lever collars98365000 |
9 | O-ring 21x2,598211000 |
10 | handle98455000 |
11 | screw cover96338000 |
12 | flange95498000 |
13 | nut97209000 |
14 | O-Ring 32x298193000 |
15 | cartridge, assy95646001 |
16 | locking screw for handle95140000 |
17 | seal95008000 |
18 | connection hose 600 mm M10x195561000 |
19 | O-ring 8x1,7597827000 |
20 | connection hose 900 mm M8x0,75 G3/896316000 |
21 | O-ring 7x1,598422000 |
22 | sealing set95581000 |
23 | hose 1,50 m95507000 |
24 | weight92500000 |
25 | seal92582000 |
26 | support97523000 |
27 | fixing set (Ø 34)95049000 |
28 | lever collar97548000 |
Innovative technologies
For more space at the kitchen sink
Flexibility at the kitchen sink
Save water, protect the clima
ComfortZone
For more space at the kitchen sink
Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
EcoSmart
Save water, protect the clima
This tap needs just 6 l/min – significantly less water than our standard taps and with no loss of comfort. And it also reduces energy costs, as just a fraction of the water used in standard taps needs to be heated. What a way to conserve resources!
Spray Types

LaminarSpray
Crystal-clear spray type with no added air for the sink. This spray is a great help when going through the day-to-day kitchen routine, e.g. quickly filling large pots or bowls. Efficient with very little splashback.
