sBox
Rim and tile mounted bath basic set

Rim and tile mounted bath basic set
 View in AR
 360° View

Art. no. 15490180

Article features

  • suitable for rim or tile mounted installation
  • 1 function
  • connection thread: R ½
  • connection dimension: DN15
  • connection hose length: 600 mm
  • bath rim width at least 80 mm
  • drilling diameter on bath tub: two drilled holes Ø 50/51 mm and connection by sawing out required (consider template)
  • clamping range: 0 - 30 mm

Downloads

Installation information

Scale drawing

Installation example

Download all Installation example
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

Mounting angle set for installation plate for tile mounted installation
sBox

Mounting angle set for installation plate for tile mounted installation
Installation plate for tile mounted installation
sBox

Installation plate for tile mounted installation

Trust in highest quality

5

Year warranty

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.

Find all compatible products for your spare part

Product range
Product name
Art. No.
Finish
Finish & Art. No.
Construction year

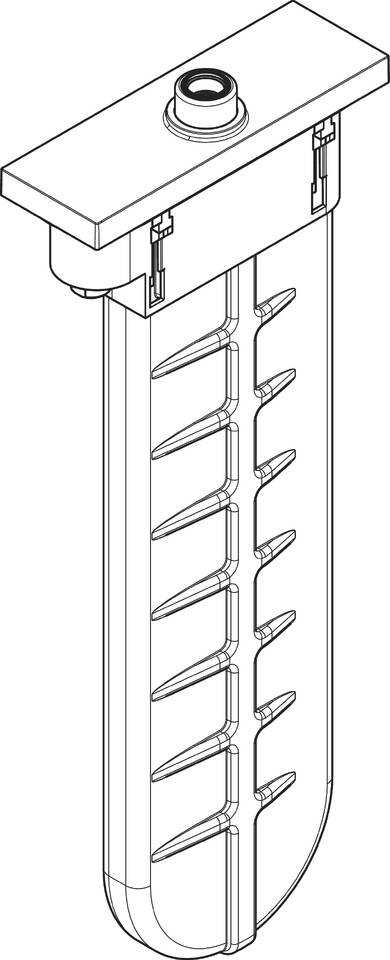

sBox Finish set square
Finish set square 28012000
28012000
Chrome
> 04/19

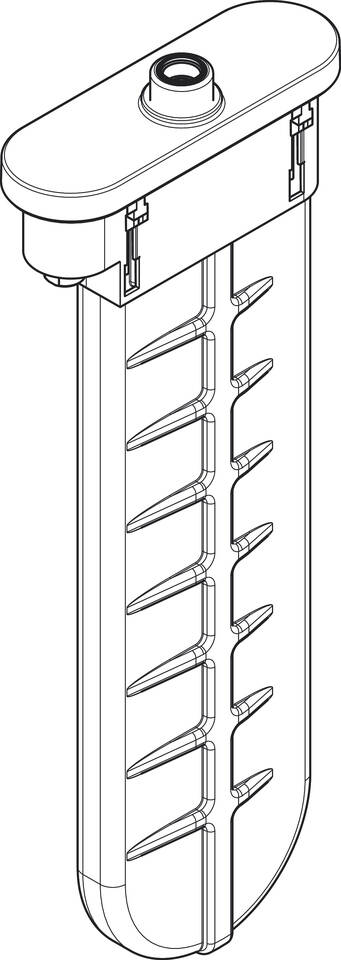

sBox Finish set oval
Finish set oval 28022000
28022000
Chrome
> 04/19
sBox Finish set square
Finish set square 28012990
28012990
Polished Gold Optic
> 07/19
sBox Finish set square
Finish set square 28012250
28012250
Brushed Gold Optic
> 07/19
sBox Finish set square
Finish set square 28012300
28012300
Polished Red Gold
> 07/19
sBox Finish set square
Finish set square 28012310
28012310
Brushed Red Gold
> 07/19
sBox Finish set square
Finish set square 28012140
28012140
Brushed Bronze
> 07/19
sBox Finish set square
Finish set square 28012330
28012330
Polished Black Chrome
> 07/19
sBox Finish set square
Finish set square 28012340
28012340
Brushed Black Chrome
> 07/19
sBox Finish set square
Finish set square 28012800
28012800
Stainless Steel Optic
> 07/19
sBox Finish set oval
Finish set oval 28022990
28022990
Polished Gold Optic
> 07/19
sBox Finish set oval
Finish set oval 28022250
28022250
Brushed Gold Optic
> 07/19
sBox Finish set oval
Finish set oval 28022300
28022300
Polished Red Gold
> 07/19
sBox Finish set oval
Finish set oval 28022310
28022310
Brushed Red Gold
> 07/19
sBox Finish set oval
Finish set oval 28022140
28022140
Brushed Bronze
> 04/20
sBox Finish set oval
Finish set oval 28022330
28022330
Polished Black Chrome
> 07/19
sBox Finish set oval
Finish set oval 28022340
28022340
Brushed Black Chrome
> 07/19
sBox Finish set oval
Finish set oval 28022800
28022800
Stainless Steel Optic
> 07/19
sBox Finish set square
Finish set square 28012950
28012950
Brushed Brass
> 07/19
sBox Finish set square
Finish set square 28012820
28012820
Brushed Nickel
> 07/19
sBox Finish set oval
Finish set oval 28022820
28022820
Brushed Nickel
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017300
28017300
Polished Red Gold
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017310
28017310
Brushed Red Gold
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017140
28017140
Brushed Bronze
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017330
28017330
Polished Black Chrome
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017000
28017000
Chrome
> 07/19
sBox Finish set softsquare
Finish set softsquare 28017250
28017250
Brushed Gold Optic
> 07/19
