hansgrohe Ecos
Single lever bath mixer for concealed installation

product.image.alt
 View in AR
 360° View
Finish Chrome

Art. no. 14101000

Article features

  • 2 functions
  • maximum flow rate at 3 bar: 30,7 l/min
  • flow rate for bath spout at 3 bar: 30,7 l/min
  • flow rate of hand shower at 3 bar: 27,4 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • diverter with automatic resetting
  • connection type: basic set
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • no additional maintenance opening required

Downloads

Technical drawings

Download all Technical drawings

Instructions

Download all Instructions
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Notice
Please note that to install product XY further products are required.

Required parts

Basic set for single lever bath mixer for concealed installation
hansgrohe

Basic set for single lever bath mixer for concealed installation

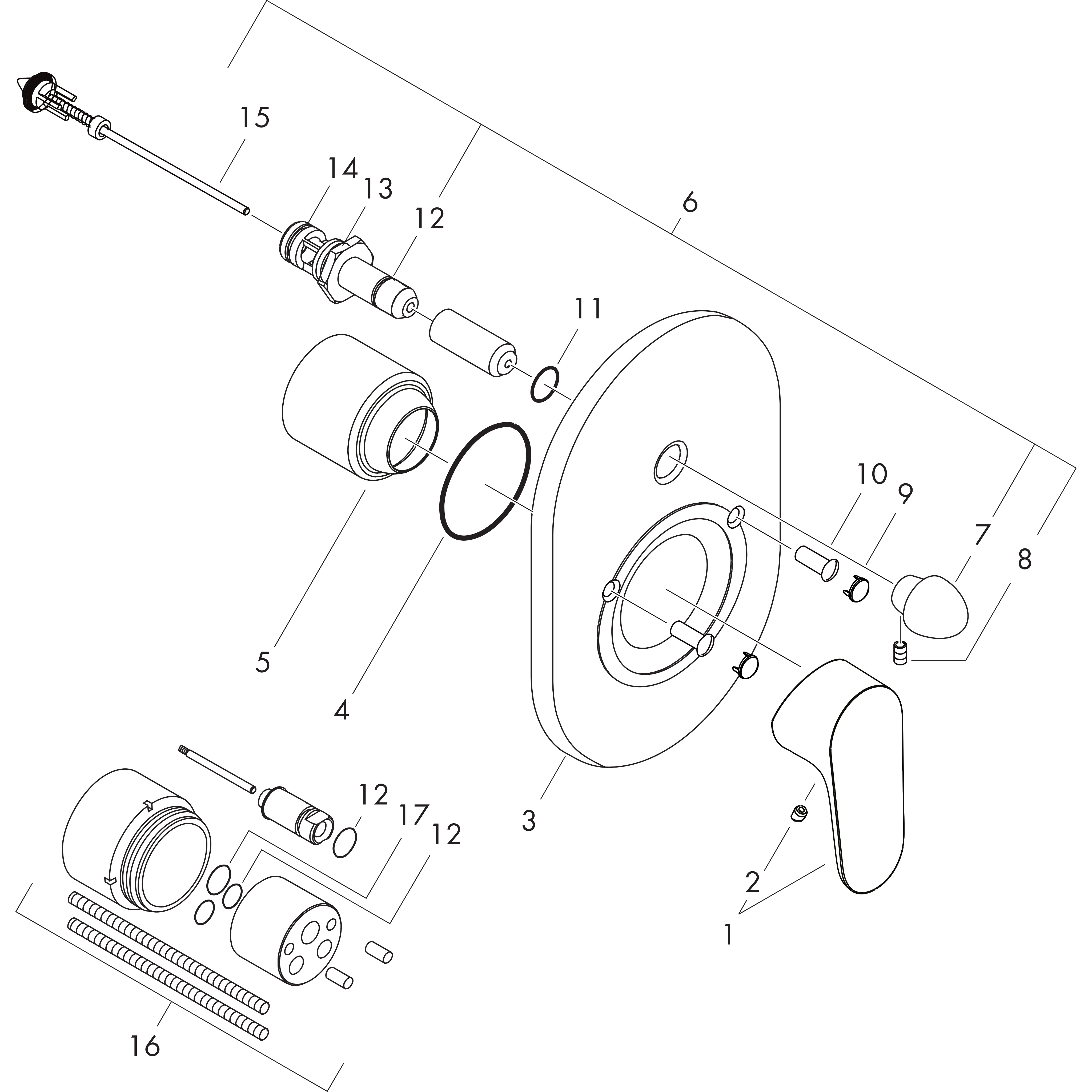

Spare parts for year of manufacture 01/18

To the spare parts catalogue
To the spare parts catalogue
product.spareparts.image.alt
Art. no. DescriptionArt. No.Description & Article No.
1 handle95518000
2 screw cover96338000
3 escutcheon bath/shower mixer95011000
4 O-Ring 48x395508000
5 flange96348000
6 diverter assy with sleeve and handle95015000
7 diverter knob cpl.95013000
8 hollow set screw M4x1097667000
9 cover cap95433000
10 hollow screw96065000
11 O-ring 14x398130000
12 O-ring 10x1,598123000
13 O-ring 16x2,598134000
14 O-ring 13x298128000
15 selector assy96937000
16 extension set 28 mm tub mixer32498000
17 O-ring 12x1,598430000
