hansgrohe iFrame universal
Concealed cistern system 820, PVC

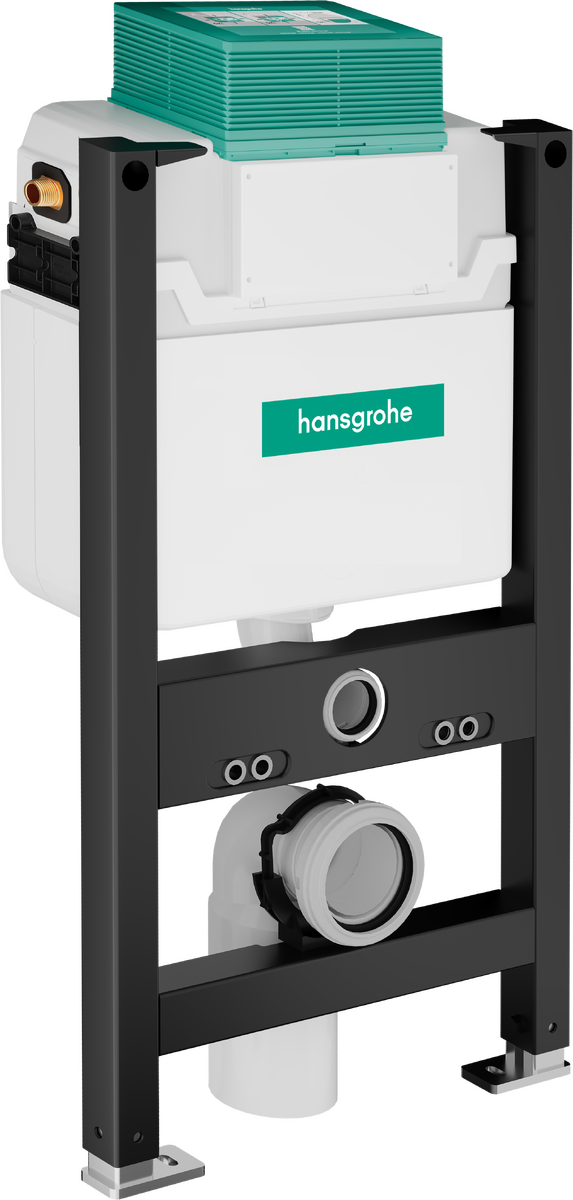

Concealed cistern system 820
 View in AR
 360° View

Art. no. 01011187

Article features

  • material drainage pipe: PVC
  • quality class cistern: Polypropylene (PP)
  • center distance WC fastening: 180 mm
  • drainage pipe depth adjustable: 20 - 60 mm
  • with contact noise insulation set
  • suitable for flush flow throttling
  • position tap water connection: side
  • wall type: drywall construction, solid wall construction
  • pipe outer diameter drainage: 110 mm
  • dimension connection tap water: G ½
  • toilet height adjustable
  • dimensions: 820 x 450 x 200 mm (HxWxD)
  • More Flexible: suitable for different conditions
  • Silent Flush: free from noise disturbance
  • Water damage protection: for more security
  • suitable for shelf operation

Downloads

Technical drawings

Download all Technical drawings

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush
Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush
Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush

Innovative technologies

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Water damage protection

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Trust in highest quality

5

Year warranty

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
