hansgrohe iFrame universal
Concealed cistern system 1144, HDPE

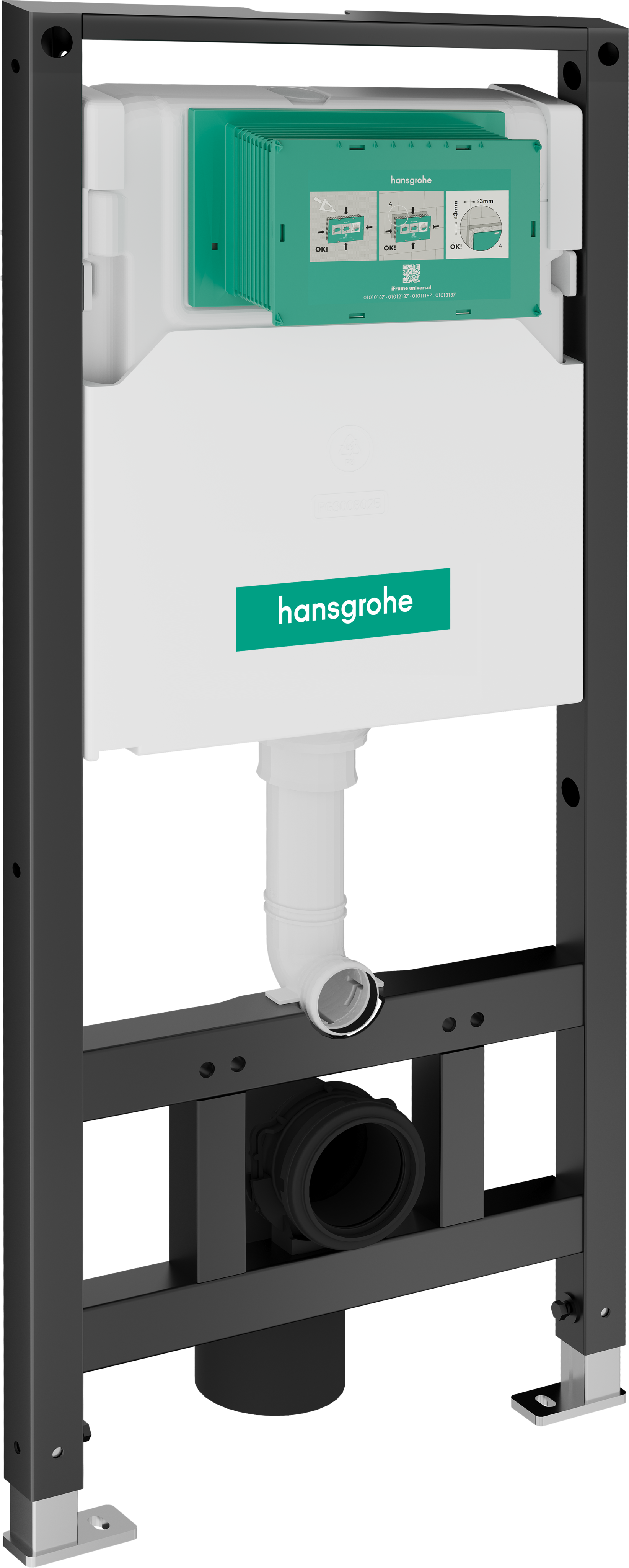

Concealed cistern system 1144
 View in AR
 360° View

Art. no. 01012187

Article features

  • material drainage pipe: HDPE
  • quality class cistern: Polyethylene (PE)
  • drainage pipe depth adjustable: 20 - 60 mm
  • with contact noise insulation set
  • suitable for flush flow throttling
  • position tap water connection: back, above
  • wall type: drywall construction, solid wall construction
  • pipe outer diameter drainage: 110 mm
  • dimension connection tap water: G ½
  • toilet height adjustable
  • dimensions: 1144 x 506 x 200 mm (HxWxD)
  • More Flexible: suitable for different conditions
  • Silent Flush: free from noise disturbance
  • Water damage protection: for more security
  • suitable for shelf operation

Downloads

Technical drawings

Download all Technical drawings
Download all files

Installation information

Scale drawing

Download all files

Required parts - Select variant

Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush
Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush
Flush plate for dual flush
hansgrohe iFrame Original Q

Flush plate for dual flush

Innovative technologies

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Water damage protection

For maximum security

Avoid water damage with a pre-assembled sealing membrane. It is 100% waterproof. This prevents any shower water from getting through the wall or floor for a reliable and safe showering experience.

Trust in highest quality

5

Year warranty

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
