hansgrohe Crometta S

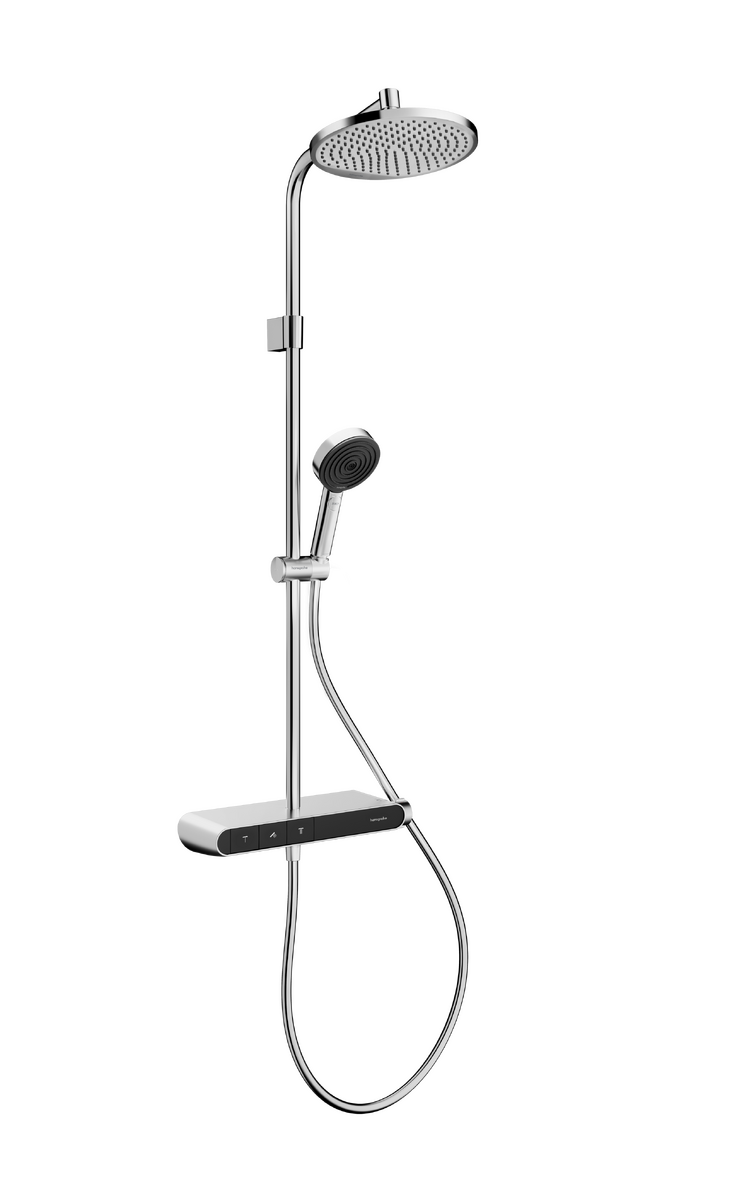

Showerpipe 240 1jet 2 ticks with bath thermostat ShowerTablet Select 360

Showerpipe 240 1jet 2 ticks with bath thermostat ShowerTablet Select 360
 View in AR
 360° View
Finish Chrome

Art. no. 26970009

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
  • overhead shower Crometta S 240
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: Rain
  • shelf made of plastic
  • spray type hand shower: PowderRain, IntenseRain, Massage spray
  • flow rate of hand shower at 3 bar: 5,5 l/min
  • maximum flow rate for Showerpipe at 3 bar: 16,3 l/min
  • max. operating pressure: 6 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • slider rotatable on the pipe for left or right operation
  • CoolContact thermostat: Prevents the housing from heating up, making showering even safer
  • thermostat ShowerTablet Select 360
  • SafetyStop at 40°C
  • convenient diversion via Select button
  • simultaneous utilization of 3 functions
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • variable drilling hole distance: 700 - 850 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • Thermostat is delivered with buttons overhead shower, bath tub and hand shower
  • 3 functions
  • WELS SGP 2 Ticks SHT-2024/043784/SLS

Downloads

BIM data

Download all BIM data

Technical drawings

Download all Technical drawings

Instructions

Download all Instructions
Download all files

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.

Thermostat

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

CoolContact

Safe and indulgent showering

This thermostatic mixer is fitted with innovative cooling technology to prevent it from getting too hot, keeping it nice and cool to the touch. For care-free showering with no need to keep a safe distance or fear scalding.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Select

Intuitive jet adjustment

The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

VarioFix

Flexible mounting with variable wall support.

The flexible wall support allows the use of existing drill holes and individual installation of shower bars. Ideal for easy shower and bathtub renovations.

Spray Types

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.
An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

IntenseRain

Stimulating water sprays that wash away tiredness and immediately make the person feel nice and awake. The perfect and quick way to feel fit for the day ahead. The powerful spray also effortlessly rinses shampoo out of hair.

Massage

An invigorating spray that soothes and causes everyday stresses to flow down the drain. The water sprays are concentrated to ease tense spots. For an indulgent and relaxing spa-like shower, every single day.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Trust in highest quality

5

Year warranty

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
